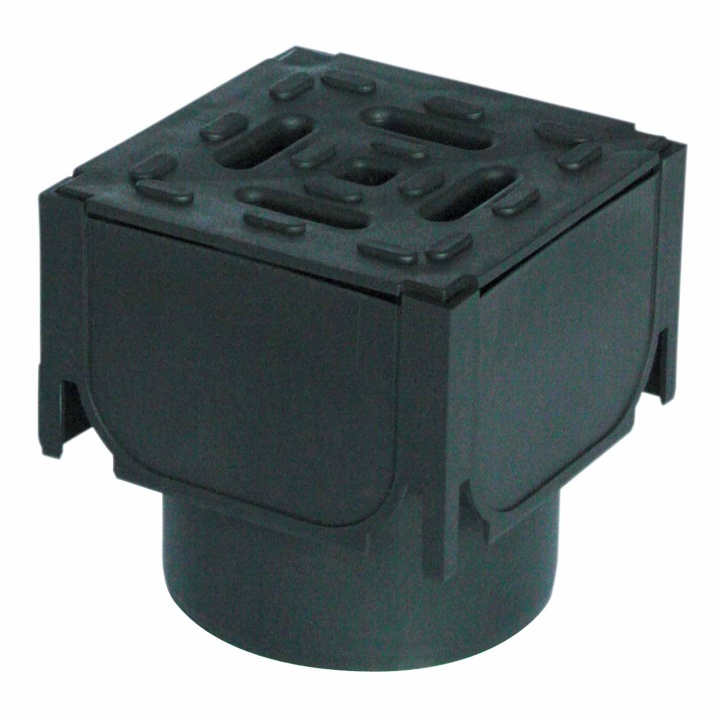

ACO HexDrain® Corner Unit with Black Plastic Grating and Vertical Outlet
Item Code: 395600495
£35.57Ex VAT£42.68 Inc VAT
Click & CollectAvailable for collection
DeliveryFree delivery available (restrictions apply)
Click & Collect
Click & Deliver
OverviewSpecifications
Data Sheets
The ACO HexDrain® Corner Unit is a versatile component designed to connect and maintain ACO HexDrain® channel installations. It allows up to four drainage runs to meet at 90° junctions, enabling flexible layout designs for patios, paths, driveways and threshold drainage areas.
Manufactured from recycled polypropylene, ACO HexDrain® is suitable for pedestrianised domestic installations such as paths, patios and cycleways (Load Class A 15). The high quality ACO HexDrain® channels clip together, allowing for quick and easy installation. With an 80mm depth the ACO HexDrain® is also a great shallow channel for challenging domestic installations.
Benefits
- Easy fit end cap for both male and female connection
- Choice of eight vertical outlet positions on every channel
- Cutting guide to create half metre channels
- Installation guide clearly marked on the underside of the channel
- UKCA and CE marked and fully certified to Load Class A 15 BS EN 1433:2002
- Channels clip together for easy and quick on-site fabrication
- Microgrip grating surface finish, provides increased grip for pedestrians (black plastic grating only)
- Anti-splay and anti-shunt features for improved performance under trafficked conditions
- 80mm deep low profile drainage channel
| Product Brand | Aco |
|---|---|
| Material | Recycled Polypropylene |
| Warranty Period | 1 Year |
| Weight (kg) | 0.26 |
| Depth | 125 |
| Length | 125mm |
| Height | 125mm |
| Width | 125mm |
| Manufacturer Code | 19559 |
Certifications
- CE Marked
Supplier Website https://www.aco.co.uk
Conversion & Materials Calculator
